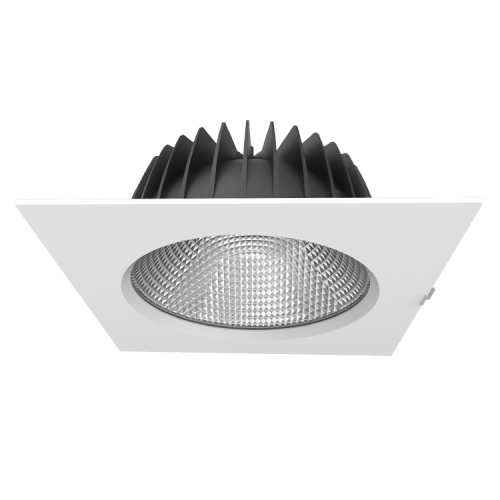

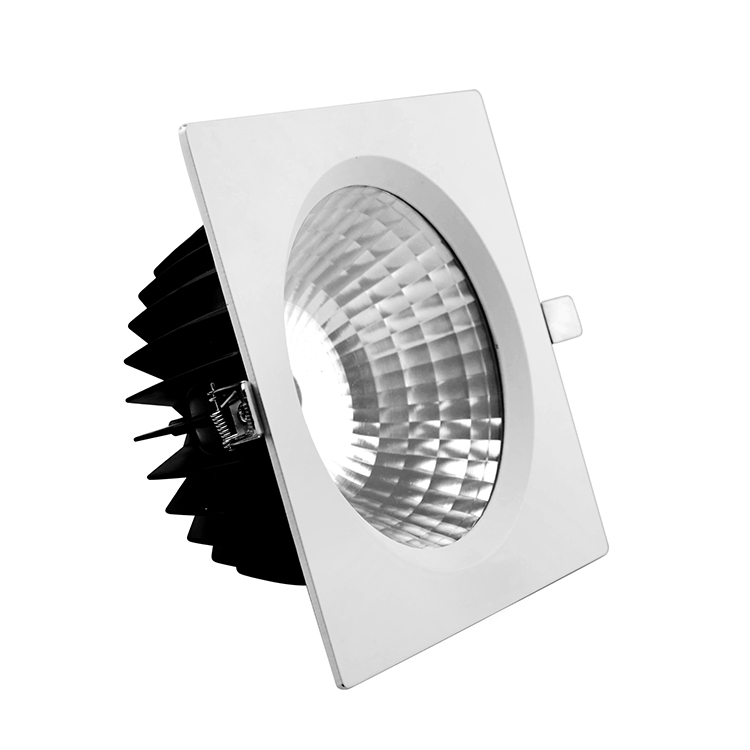

TRITON (MB 528SQ)
System input power (W) : 24 - 6 - 12
Light Source : COB LED
Cut Size(mm) : 80 - 145 - 100
 6W |  12W |  24W | |
|---|---|---|---|
| System input power (W) | 6 | 12 | 24 |
| Input voltage range (V-AC/Hz) | 220-240/50-60 | 220-240/50-60 | 220-240/50-60 |
| Power factor | 0.5 | 0.5 | 0.5 |
| LED module type | With separate ballast | With separate ballast | With separate ballast |
| LED module structure | Integrated | Integrated | Integrated |
| Light Source | COB LED | COB LED | COB LED |
| Nominal luminous Flux (Lm) | 420 | 840 | 1680 |
| Nominal system luminous efficiency (Lm/W) | 70 | 70 | 70 |
| Number of LEDs (pcs) | 1 | 1 | 1 |
| Nominal color temperature (°K) | 3000-6000 | 3000-6000 | 3000-6000 |
| Color rendering index (Ra) | 70 | 70 | 70 |
| Lumen maintenance factor at 1000 hours | 98% | 98% | 98% |
| Lumen maintenance group at 6000 hours | A | A | A |
| Light distribution angle (degrees) | 45 | 45 | 45 |
| Cut Size(mm) | 80 | 100 | 145 |
| Dimension(mm) | 100*100*H50 | 132*132*H70 | 175*175*H105 |
| Material (PC) | Aluminum | Aluminum | Aluminum |
| Ingress Protection (IP) | 20 | 20 | 20 |
| Weight (Kg) | 0.18 | 0.55 | 0.67 |
| Rated life in ambient temperature 25 °C | 50000 (hrs) | 50000 (hrs) | 50000 (hrs) |
| Rated life in ambient temperature 45 °C | 30000(hrs) | 30000(hrs) | 30000(hrs) |
| Maximum junction temperature LED (°C) | 125 | 125 | 125 |
| Humidity range (%) | 10~90RH | 10~90RH | 10~90RH |
| Ambient temperature range (°C) | -20 ~ +45 | -20 ~ +45 | -20 ~ +45 |
| Product Code | MB006-528 SQ | MB012-528 SQ | MB024-528 SQ |
Round frame with Square edge
MB06 528SQ
6w , 420 lm , beam angle 45 , Cut size 80 , Size 110.50
MB012 528SQ
12w , 840 lm , Beam angle 45 , Cut size 100 , Size 130.65
MB024 528SQ
24w , 1680 lm , Beam angle 45 , Cut size 145 , Size 173.105
