ATOM ( 50152500 )
System input power (W) : 120 - 500
Light Source : SMD3030 - SMD5050
 120W | 500W | 500W | |
|---|---|---|---|
| System input power (W) | 120 | 500 | 500 |
| Input voltage range (V-AC/Hz) | AC100-240 V | AC100-240 V | AC100-240 V |
| Power factor | 0.98 | 0.98 | 0.98 |
| LED module type | Philips | CREE 5050 | CREE 5050 |
| LED module structure | SMD | SMD | SMD |
| Light Source | SMD3030 | SMD5050 | SMD5050 |
| Nominal luminous Flux (Lm) | 13200 | 43049.5 | 43049.5 |
| Nominal system luminous efficiency (Lm/W) | 110 | 89 | 89 |
| Number of LEDs (pcs) | 112 | 84 | 84 |
| Nominal color temperature (°K) | 6000K | 6000K | 4000K |
| Color rendering index (Ra) | 70 | 70 | 70 |
| Light distribution angle (degrees) | 136°*64° | 5 | 5 |

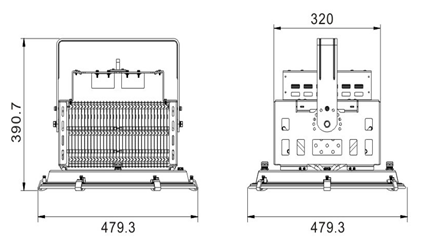

| Dimension(mm) | 631.7*215*89.8mm | φ479.3*390.7mm | φ479.3*390.7mm |
| Material (PC) | Aluminum | Aluminum | Aluminum |
| Ingress Protection (IP) | IP65 | IP65 | IP65 |
| Weight (Kg) | 4.5 | 17.5 | 17.5 |
| Humidity range (%) | 10~90RH | 10~90RH | 10~90RH |
