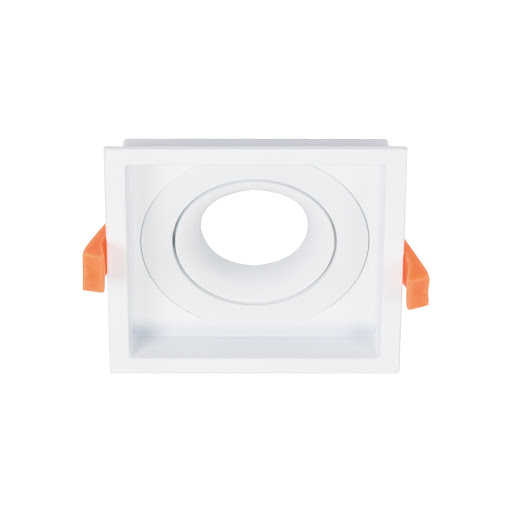

LOGAN 10401010W
System input power (W) : 14w - 7W - 21w
Light Source : SMD
Cut Size(mm) : Φ85*85 - Φ190*100 - Φ270*100
 |  |  | |
|---|---|---|---|
| System input power (W) | 7W | 14w | 21w |
| Dimension(mm) | 100*100*100 | 200*110*75 | 285*110*75 |
| Light distribution angle (degrees) | 36 | 36 | 36 |
| Color rendering index (Ra) | 80 | 80 | 80 |
| Cut Size(mm) | Φ85*85 | Φ190*100 | Φ270*100 |
| Ingress Protection (IP) | 20 | 20 | 20 |
| Power factor | 0.87 | 0.87 | 0.87 |
| Lumen maintenance group at 6000 hours | A | A | A |
| Ambient temperature range (°C) | -20~ +50 | -20~ +50 | -20~ +50 |
| Input voltage range (V-AC/Hz) | AC200_250V/50_60Hz | AC200_250V/50_60Hz | AC200_250V/50_60Hz |
| Light Source | SMD | SMD | SMD |
| Color Temperature | Warm-Natural-Cool | Warm-Natural-Cool | Warm-Natural-Cool |
| Material (PC) | Aluminum | Aluminum | Aluminum |
| Product Code | 10401010W/10401010B | 10401020W/10401020B | 10401030W/10401030B |
