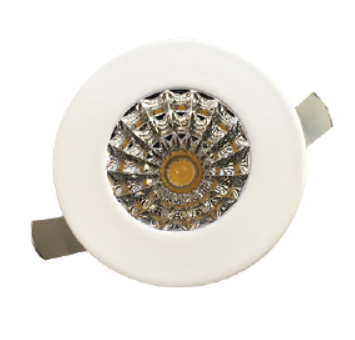

HYDRA MB01S010
System input power (W) : 1 - 3
Light Source : HIGH POWER LED - COB
Cut Size(mm) : 25 - 40
| 1W | 3W | |
|---|---|---|
| System input power (W) | 1 | 3 |
| Input voltage range (V-AC/Hz) | 22-240/50-60 | 22-240/50-60 |
| Power factor | 0.5 | 0.5 |
| LED module type | With separate ballast | With separate ballast |
| LED module structure | Integrated | Integrated |
| Light Source | HIGH POWER LED | COB |
| Nominal luminous Flux (Lm) | 50 | 180 |
| Nominal system luminous efficiency (Lm/W) | 50 | 60 |
| Number of LEDs (pcs) | 1 | 1 |
| Nominal color temperature (°K) | 2800-6200 | 2800-6200 |
| Color rendering index (Ra) | 70 | 70 |
| Lumen maintenance factor at 1000 hours | 95% | 95% |
| Lumen maintenance group at 6000 hours | A | A |
| Light distribution angle (degrees) | 45 | 30 |
| Cut Size(mm) | 25 | 40 |
| Dimension(mm) | 31*23 | 48*33 |
| Material (PC) | Aluminum | Aluminum |
| Ingress Protection (IP) | 20 | 20 |
| Weight (Kg) | 0.05 | 0.07 |
| Rated life in ambient temperature 25 °C | 50000 (hrs) | 50000 (hrs) |
| Rated life in ambient temperature 45 °C | 35000 (hrs) | 35000 (hrs) |
| Maximum junction temperature LED (°C) | 120 | 120 |
| Humidity range (%) | 10~90RH | 10~90RH |
| Ambient temperature range (°C) | -20 ~ +45 | -20 ~ +45 |
| Product Code | MB01-S010 | MB03-S010 |
1w , 90 lm , bema angle 30 , cut size 25 , size 30.20
Color ; WW , DL , NW , Red , Blue , Green
