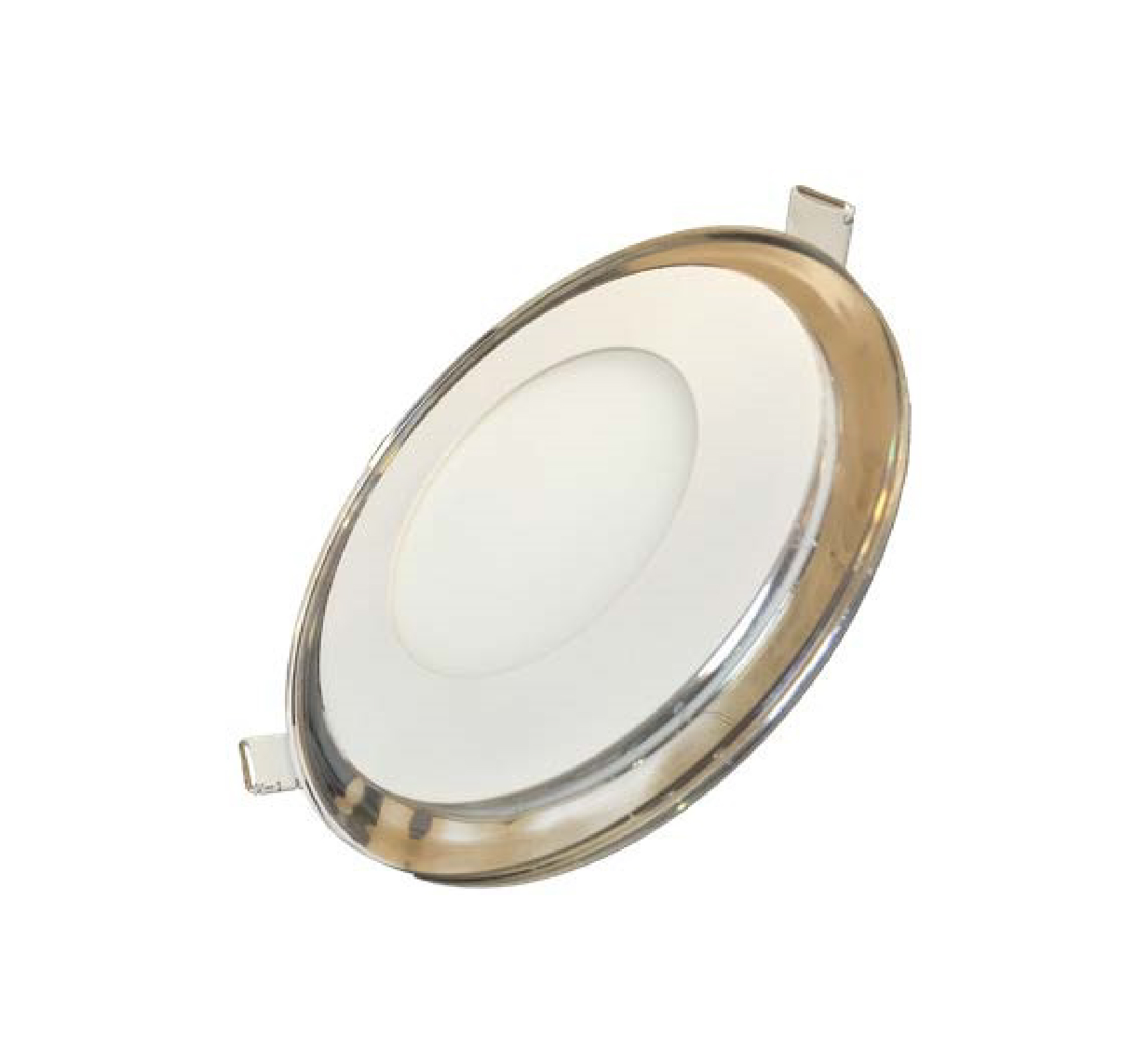

CG CG16RD
System input power (W) : 16w - 20w
Light Source : SMD
Cut Size(mm) : 140 - 112
 | | |
|---|---|---|
| System input power (W) | 16w | 20w |
| Nominal luminous Flux (Lm) | 1350 | 1890 |
| Light distribution angle (degrees) | 120 | 120 |
| Dimension(mm) | 160*20 | 180*20 |
| Cut Size(mm) | 112 | 140 |
| Power factor | 0.8 | 0.8 |
| Ambient temperature range (°C) | -20~ +50 | -20~ +50 |
| Color rendering index (Ra) | 80 | 80 |
| Color Temperature | Warm-Cool | Warm-Cool |
| Lumen maintenance group at 6000 hours | A | A |
| Ingress Protection (IP) | 20 | 20 |
| Input voltage range (V-AC/Hz) | AC200_250V/50_60Hz | AC200_250V/50_60Hz |
| LED Module Life Time | 30000h | 30000h |
| Light Source | SMD | SMD |
| Lumen Maintenance | L70B10 | L70B10 |
| Material (PC) | Aluminum | Aluminum |
| Product Code | CG16RD | CG20RD |
